Air-source

Up to three-quarters less electricity for the same hot water.

Air-source heat pumps move heat instead of making it, delivering several units of heat for every unit of electricity they draw. For hot water and heating, they are the most efficient electric option available and they keep working through the night and the cold.

What it is

The idea, plainly

A heat pump extracts warmth from the outside air and concentrates it into your water. Because it transfers heat rather than generating it with a resistance element, it can be three to four times more efficient than a conventional electric geyser.

How it works

  1. 01

    A fan draws ambient air across an evaporator, capturing free heat.

  2. 02

    A compressor raises that heat to a useful temperature.

  3. 03

    The heat is transferred into your water through a heat exchanger.

  4. 04

    Smart controls run it at the most efficient point for the conditions.

The payoff

What you get

For your home

  • Around 70% less electricity than a standard electric water heater
  • Hot water day and night, independent of sunshine
  • All-in-one units with the tank and pump integrated
  • Quiet operation, suitable for tight installations
  • By-product cool air can be ducted to a store, server room or bathroom

For business & institutions

  • Dramatically lower running costs at scale
  • Consistent output regardless of weather or time of day
  • Commercial capacities for high continuous demand
  • Pairs with solar thermal for a multi-energy hot-water plant
  • By-product cool air can be ducted to a store, server room or kitchen

Models

The Heat Pumps range

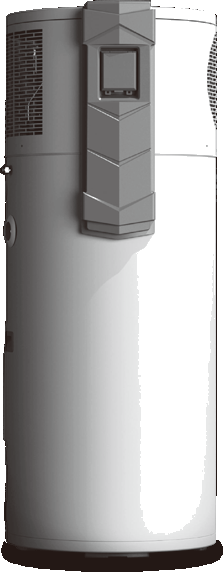

All-in-One R290 (Side Air)

All-in-One R290 (Side Air)

SIHP-200TD2 / SIHP-270TD2

Natural-refrigerant R290 all-in-one heat pump water heater with a side-air intake, enamel tank and micro-channel exchanger. WiFi control, intelligent modes and a 1.8 kW electric element for backup.

Refrigerant
R290 (low-GWP)
COP
4.15 (A20/15, W15-55)
Heating capacity
2.78 kW
Hot water rate
60 L/h
Electric backup
1.8 kW
Working range
-7 to 43 °C
Noise
43 dB(A)
200 L270 L

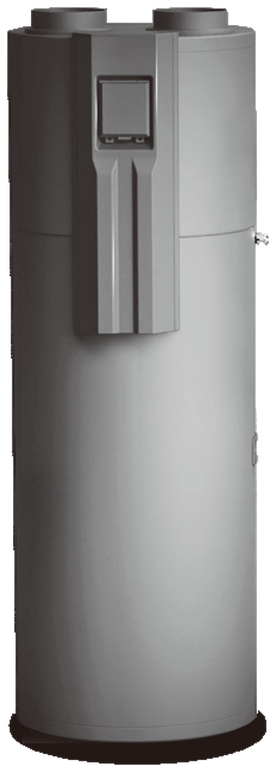

All-in-One R290 (High-Temp)

SIHP-200/250/300TB2

Top-air R290 all-in-one delivering hot water up to 75 °C with a class-leading COP of 4.45. Enamel tank with micro-channel exchanger, WiFi control and a 2 kW backup element.

Refrigerant
R290 (low-GWP)
COP
4.45
Max water temp
75 °C
Heating capacity
2.8 kW
Hot water rate
60 L/h
Electric backup
2 kW
Noise
48 dB
200 L250 L300 L
All-in-One R134a (Solar-Ready)

All-in-One R134a (Solar-Ready)

YT-200/250/300TB1

Domestic all-in-one delivering up to 75 °C, with an optional solar coil so it can pair with solar thermal. Auto-defrost for safe winter use and up to 75% energy saving versus a conventional electric heater.

Refrigerant
R134a
COP
3.91
Max water temp
75 °C
Heating capacity
2.4 kW
Electric backup
2 kW
Solar coil
Available
Energy rating
ERP A+
200 L250 L300 L

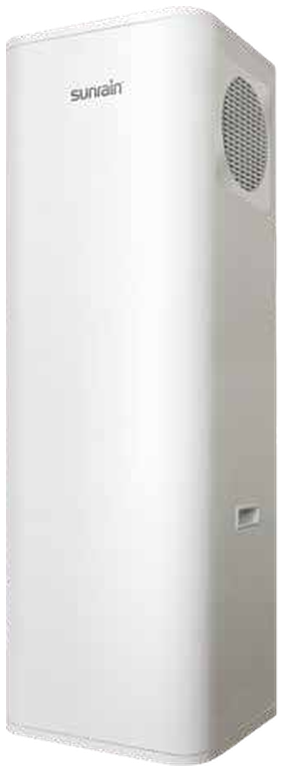

All-in-One R134a (Outdoor)

YT-150/200/250TC1

Square, space-uniform all-in-one rated IPX4 for outdoor installation, with axial ventilation and a micro-channel exchanger for high efficiency. WiFi smart control.

Refrigerant
R134a
COP
4.1
Heating capacity
2.4 kW
Backup heater
2 kW
Protection
IPX4 (outdoor)
Default temp
55 °C
Noise
48 dB
150 L200 L250 L

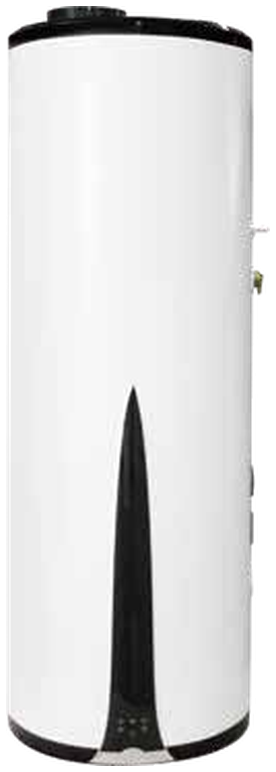

Wall-Mounted Compact

YT-GV / YT-GH series

Compact wall-mounted heat pump water heaters in vertical or horizontal orientation — silent at 38 dB(A) and ideal for apartments and tight spaces. R290 and R134a options, hot water up to 75 °C.

Refrigerant
R290 / R134a
COP
up to 4.32
Max water temp
75 °C
Electric element
2 kW
Mounting
Wall (vertical / horizontal)
Noise
38 dB(A)
60 L80 L100 L

Get in touch

Ready to talk Heat Pumps?

Tell us about your site and demand, and we'll design the right system — sized properly, installed cleanly, maintained for the long run.
